Amazon EKS and Grafana stack

Build secure Amazon EKS cluster with Grafana stack

Posted Updated
Preview Image
By Petr Ruzicka
views 47 min read
Amazon EKS and Grafana stack

I will outline the steps for setting up an Amazon EKS environment that prioritizes security, including the configuration of standard applications.

The Amazon EKS setup should align with the following criteria:

  • Utilize two Availability Zones (AZs), or a single zone if possible, to reduce payments for cross-AZ traffic
  • Spot instances
  • Less expensive region - us-east-1
  • Most price efficient EC2 instance type t4g.medium (2 x CPU, 4GB RAM) using AWS Graviton based on ARM
  • Use Bottlerocket OS for a minimal operating system, CPU, and memory footprint
  • Leverage Network Load Balancer (NLB) for highly cost-effective and optimized load balancing, seamlessly integrated with kgateway.
  • Karpenter to enable automatic node scaling that matches the specific resource requirements of pods
  • The Amazon EKS control plane must be encrypted using KMS
  • Worker node EBS volumes must be encrypted
  • Cluster logging to CloudWatch must be configured
  • Network Policies should be enabled where supported
  • EKS Pod Identities should be used to allow applications and pods to communicate with AWS APIs

Build Amazon EKS

Requirements

You will need to configure the AWS CLI and set up other necessary secrets and variables.

1
2
3
4
5
6
7

# AWS Credentials
export AWS_ACCESS_KEY_ID="xxxxxxxxxxxxxxxxxx"
export AWS_SECRET_ACCESS_KEY="xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
export AWS_SESSION_TOKEN="xxxxxxxx"
export AWS_ROLE_TO_ASSUME="arn:aws:iam::7xxxxxxxxxx7:role/Gixxxxxxxxxxxxxxxxxxxxle"
export GOOGLE_CLIENT_ID="10xxxxxxxxxxxxxxxud.apps.googleusercontent.com"
export GOOGLE_CLIENT_SECRET="GOxxxxxxxxxxxxxxxtw"

If you plan to follow this document and its tasks, you will need to set up a few environment variables, such as:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

# AWS Region
export AWS_REGION="${AWS_REGION:-us-east-1}"
# Hostname / FQDN definitions
export CLUSTER_FQDN="${CLUSTER_FQDN:-k01.k8s.mylabs.dev}"
# Base Domain: k8s.mylabs.dev
export BASE_DOMAIN="${CLUSTER_FQDN#*.}"
# Cluster Name: k01
export CLUSTER_NAME="${CLUSTER_FQDN%%.*}"
export MY_EMAIL="petr.ruzicka@gmail.com"
export TMP_DIR="${TMP_DIR:-${PWD}}"
export KUBECONFIG="${KUBECONFIG:-${TMP_DIR}/${CLUSTER_FQDN}/kubeconfig-${CLUSTER_NAME}.conf}"
# Tags used to tag the AWS resources
export TAGS="${TAGS:-Owner=${MY_EMAIL},Environment=dev,Cluster=${CLUSTER_FQDN}}"
export AWS_PARTITION="aws"
AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query "Account" --output text) && export AWS_ACCOUNT_ID
mkdir -pv "${TMP_DIR}/${CLUSTER_FQDN}"

Confirm that all essential variables have been properly configured:

1
2
3
4
5
6
7
8

: "${AWS_ACCESS_KEY_ID?}"
: "${AWS_REGION?}"
: "${AWS_SECRET_ACCESS_KEY?}"
: "${AWS_ROLE_TO_ASSUME?}"
: "${GOOGLE_CLIENT_ID?}"
: "${GOOGLE_CLIENT_SECRET?}"

echo -e "${MY_EMAIL} | ${CLUSTER_NAME} | ${BASE_DOMAIN} | ${CLUSTER_FQDN}\n${TAGS}"

Install the required tools:

You can bypass these procedures if you already have all the essential software installed.

Configure AWS Route 53 Domain delegation

The DNS delegation tasks should be executed as a one-time operation.

Create a DNS zone for the EKS clusters:

1
2
3
4
5
6
7

export CLOUDFLARE_EMAIL="petr.ruzicka@gmail.com"
export CLOUDFLARE_API_KEY="1xxxxxxxxx0"

aws route53 create-hosted-zone --output json \
  --name "${BASE_DOMAIN}" \
  --caller-reference "$(date)" \
  --hosted-zone-config="{\"Comment\": \"Created by petr.ruzicka@gmail.com\", \"PrivateZone\": false}" | jq

Route53 k8s.mylabs.dev zone Route53 k8s.mylabs.dev zone

Utilize your domain registrar to update the nameservers for your zone (e.g., mylabs.dev) to point to Amazon Route 53 nameservers. Here’s how to discover the required Route 53 nameservers:

1
2
3
4

NEW_ZONE_ID=$(aws route53 list-hosted-zones --query "HostedZones[?Name==\`${BASE_DOMAIN}.\`].Id" --output text)
NEW_ZONE_NS=$(aws route53 get-hosted-zone --output json --id "${NEW_ZONE_ID}" --query "DelegationSet.NameServers")
NEW_ZONE_NS1=$(echo "${NEW_ZONE_NS}" | jq -r ".[0]")
NEW_ZONE_NS2=$(echo "${NEW_ZONE_NS}" | jq -r ".[1]")

Establish the NS record in k8s.mylabs.dev (your BASE_DOMAIN) for proper zone delegation. This operation’s specifics may vary based on your domain registrar; I use Cloudflare and employ Ansible for automation:

1
2

ansible -m cloudflare_dns -c local -i "localhost," localhost -a "zone=mylabs.dev record=${BASE_DOMAIN} type=NS value=${NEW_ZONE_NS1} solo=true proxied=no account_email=${CLOUDFLARE_EMAIL} account_api_token=${CLOUDFLARE_API_KEY}"
ansible -m cloudflare_dns -c local -i "localhost," localhost -a "zone=mylabs.dev record=${BASE_DOMAIN} type=NS value=${NEW_ZONE_NS2} solo=false proxied=no account_email=${CLOUDFLARE_EMAIL} account_api_token=${CLOUDFLARE_API_KEY}"

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

localhost | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python"
    },
    "changed": true,
    "result": {
        "record": {
            "content": "ns-885.awsdns-46.net",
            "created_on": "2020-11-13T06:25:32.18642Z",
            "id": "dxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxb",
            "locked": false,
            "meta": {
                "auto_added": false,
                "managed_by_apps": false,
                "managed_by_argo_tunnel": false,
                "source": "primary"
            },
            "modified_on": "2020-11-13T06:25:32.18642Z",
            "name": "k8s.mylabs.dev",
            "proxiable": false,
            "proxied": false,
            "ttl": 1,
            "type": "NS",
            "zone_id": "2xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxe",
            "zone_name": "mylabs.dev"
        }
    }
}
localhost | CHANGED => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python"
    },
    "changed": true,
    "result": {
        "record": {
            "content": "ns-1692.awsdns-19.co.uk",
            "created_on": "2020-11-13T06:25:37.605605Z",
            "id": "9xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxb",
            "locked": false,
            "meta": {
                "auto_added": false,
                "managed_by_apps": false,
                "managed_by_argo_tunnel": false,
                "source": "primary"
            },
            "modified_on": "2020-11-13T06:25:37.605605Z",
            "name": "k8s.mylabs.dev",
            "proxiable": false,
            "proxied": false,
            "ttl": 1,
            "type": "NS",
            "zone_id": "2xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxe",
            "zone_name": "mylabs.dev"
        }
    }
}

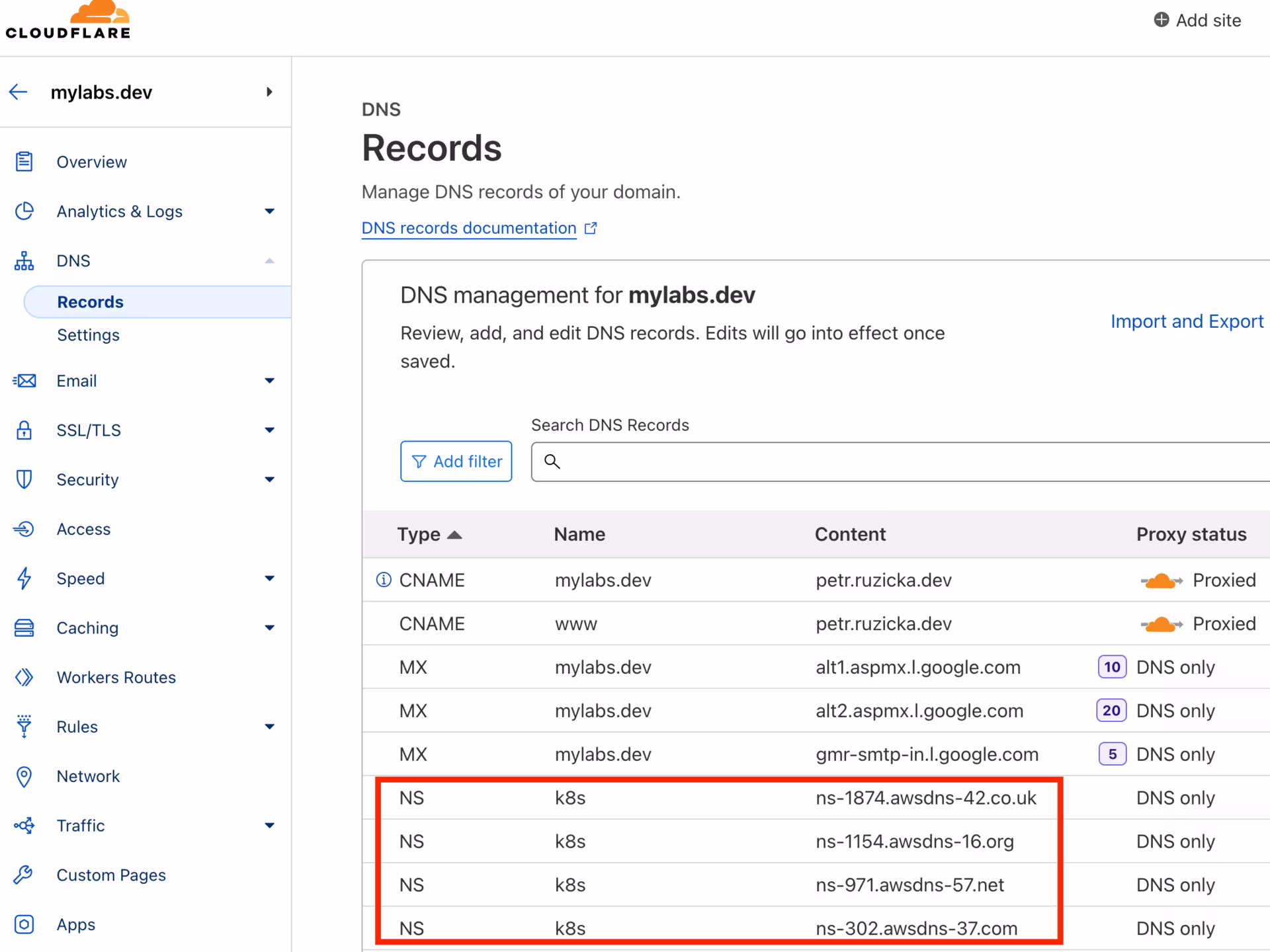

CloudFlare mylabs.dev zone CloudFlare mylabs.dev zone

Create the service-linked role

Creating the service-linked role for Spot Instances is a one-time operation.

Create the AWSServiceRoleForEC2Spot role to use Spot Instances in the Amazon EKS cluster:

1

aws iam create-service-linked-role --aws-service-name spot.amazonaws.com

Details: Work with Spot Instances

Create Route53 zone and KMS key infrastructure

Generate a CloudFormation template that defines an Amazon Route 53 zone and an AWS Key Management Service (KMS) key.

Add the new domain CLUSTER_FQDN to Route 53, and set up DNS delegation from the BASE_DOMAIN.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116

tee "${TMP_DIR}/${CLUSTER_FQDN}/aws-cf-route53-kms.yml" << \EOF
AWSTemplateFormatVersion: 2010-09-09
Description: Route53 entries and KMS key

Parameters:
  BaseDomain:
    Description: "Base domain where cluster domains + their subdomains will live - Ex: k8s.mylabs.dev"
    Type: String
  ClusterFQDN:
    Description: "Cluster FQDN (domain for all applications) - Ex: k01.k8s.mylabs.dev"
    Type: String
  ClusterName:
    Description: "Cluster Name - Ex: k01"
    Type: String
Resources:
  HostedZone:
    Type: AWS::Route53::HostedZone
    Properties:
      Name: !Ref ClusterFQDN
  RecordSet:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneName: !Sub "${BaseDomain}."
      Name: !Ref ClusterFQDN
      Type: NS
      TTL: 60
      ResourceRecords: !GetAtt HostedZone.NameServers
  KMSAlias:
    Type: AWS::KMS::Alias
    Properties:
      AliasName: !Sub "alias/eks-${ClusterName}"
      TargetKeyId: !Ref KMSKey
  KMSKey:
    Type: AWS::KMS::Key
    Properties:
      Description: !Sub "KMS key for ${ClusterName} Amazon EKS"
      EnableKeyRotation: true
      PendingWindowInDays: 7
      KeyPolicy:
        Version: "2012-10-17"
        Id: !Sub "eks-key-policy-${ClusterName}"
        Statement:
          - Sid: Allow direct access to key metadata to the account
            Effect: Allow
            Principal:
              AWS:
                - !Sub "arn:${AWS::Partition}:iam::${AWS::AccountId}:root"
            Action:
              - kms:*
            Resource: "*"
          - Sid: Allow access through EBS for all principals in the account that are authorized to use EBS
            Effect: Allow
            Principal:
              AWS: "*"
            Action:
              - kms:Encrypt
              - kms:Decrypt
              - kms:ReEncrypt*
              - kms:GenerateDataKey*
              - kms:CreateGrant
              - kms:DescribeKey
            Resource: "*"
            Condition:
              StringEquals:
                kms:ViaService: !Sub "ec2.${AWS::Region}.amazonaws.com"
                kms:CallerAccount: !Sub "${AWS::AccountId}"
  S3AccessPolicy:
    Type: AWS::IAM::ManagedPolicy
    Properties:
      ManagedPolicyName: !Sub "eksctl-${ClusterName}-s3-access-policy"
      PolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Action:
              - s3:GetObject
              - s3:DeleteObject
              - s3:PutObject
              - s3:PutObjectTagging
              - s3:AbortMultipartUpload
              - s3:ListMultipartUploadParts
            Resource: !Sub "arn:aws:s3:::${ClusterFQDN}/*"
          - Effect: Allow
            Action:
              - s3:ListBucket
            Resource: !Sub "arn:aws:s3:::${ClusterFQDN}"
Outputs:
  KMSKeyArn:
    Description: The ARN of the created KMS Key to encrypt EKS related services
    Value: !GetAtt KMSKey.Arn
    Export:
      Name:
        Fn::Sub: "${AWS::StackName}-KMSKeyArn"
  KMSKeyId:
    Description: The ID of the created KMS Key to encrypt EKS related services
    Value: !Ref KMSKey
    Export:
      Name:
        Fn::Sub: "${AWS::StackName}-KMSKeyId"
  S3AccessPolicyArn:
    Description: IAM policy ARN for S3 access by EKS workloads
    Value: !Ref S3AccessPolicy
    Export:
      Name:
        Fn::Sub: "${AWS::StackName}-S3AccessPolicy"
EOF

# shellcheck disable=SC2001
eval aws cloudformation deploy --capabilities CAPABILITY_NAMED_IAM \
  --parameter-overrides "BaseDomain=${BASE_DOMAIN} ClusterFQDN=${CLUSTER_FQDN} ClusterName=${CLUSTER_NAME}" \
  --stack-name "${CLUSTER_NAME}-route53-kms" --template-file "${TMP_DIR}/${CLUSTER_FQDN}/aws-cf-route53-kms.yml" --tags "${TAGS//,/ }"

AWS_CLOUDFORMATION_DETAILS=$(aws cloudformation describe-stacks --stack-name "${CLUSTER_NAME}-route53-kms" --query "Stacks[0].Outputs[? OutputKey==\`KMSKeyArn\` || OutputKey==\`KMSKeyId\` || OutputKey==\`S3AccessPolicyArn\`].{OutputKey:OutputKey,OutputValue:OutputValue}")
AWS_KMS_KEY_ARN=$(echo "${AWS_CLOUDFORMATION_DETAILS}" | jq -r ".[] | select(.OutputKey==\"KMSKeyArn\") .OutputValue")
AWS_KMS_KEY_ID=$(echo "${AWS_CLOUDFORMATION_DETAILS}" | jq -r ".[] | select(.OutputKey==\"KMSKeyId\") .OutputValue")
AWS_S3_ACCESS_POLICY_ARN=$(echo "${AWS_CLOUDFORMATION_DETAILS}" | jq -r ".[] | select(.OutputKey==\"S3AccessPolicyArn\") .OutputValue")

After running the CloudFormation stack, you should see the following Route53 zones:

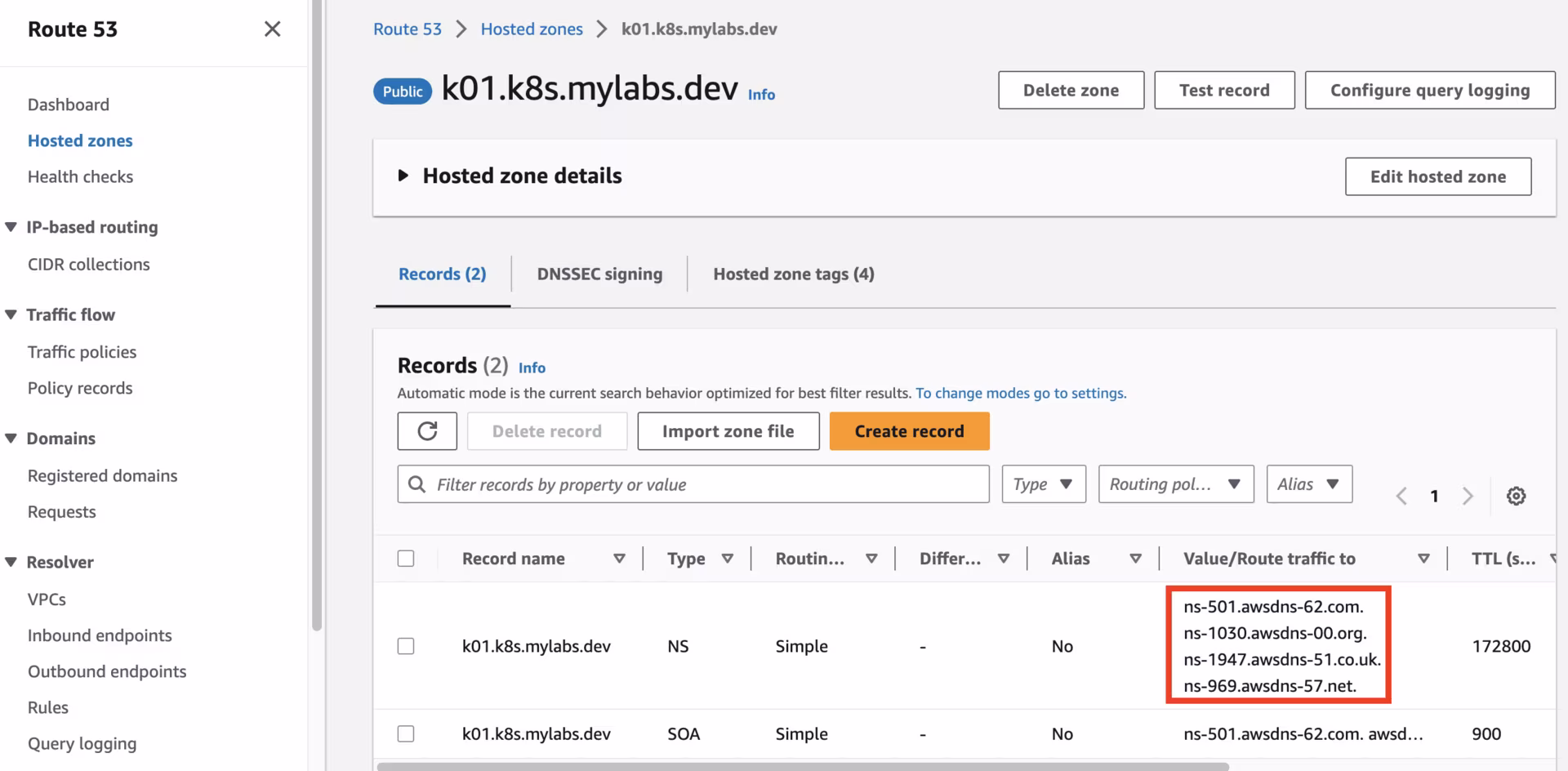

Route53 k01.k8s.mylabs.dev zone Route53 k01.k8s.mylabs.dev zone

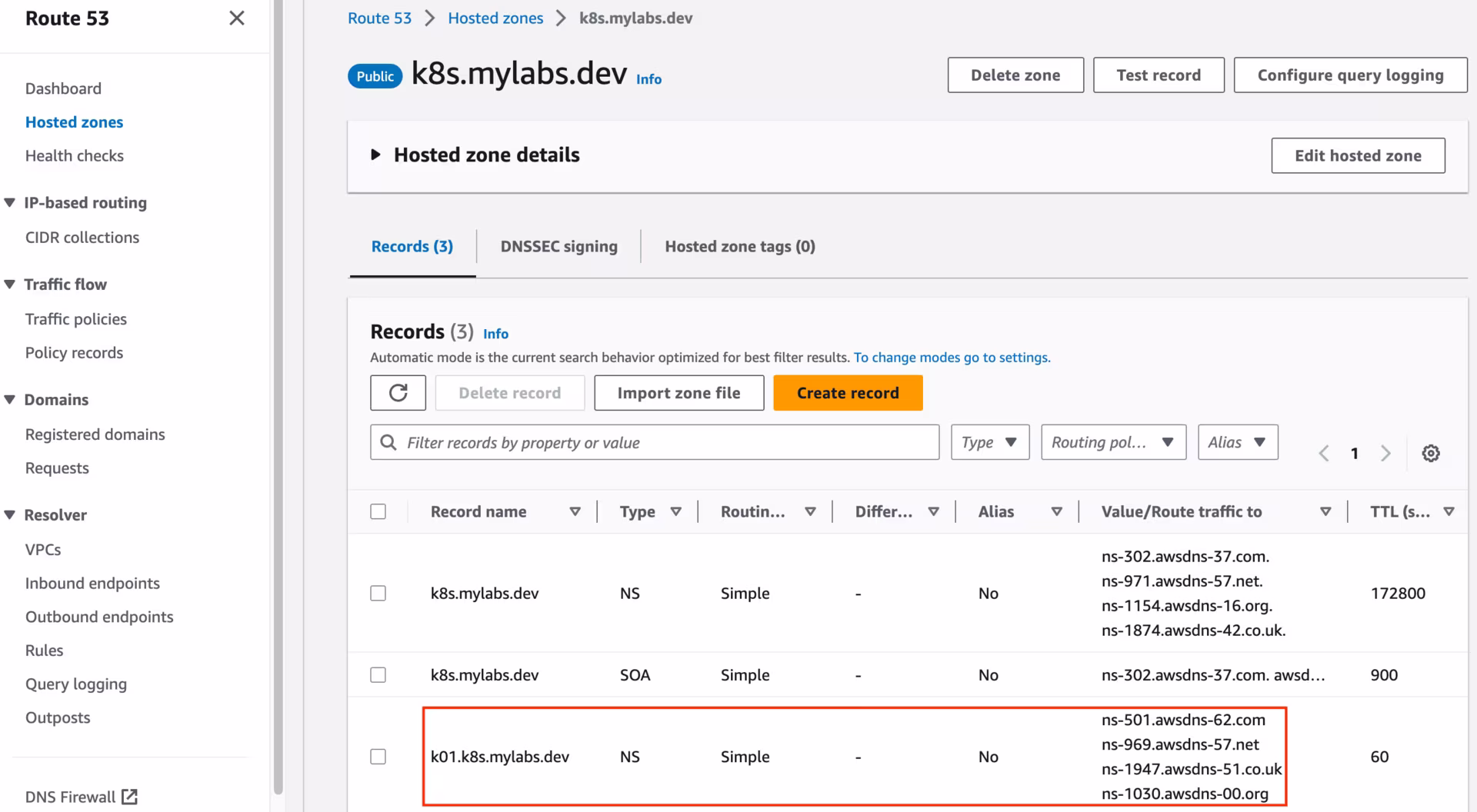

Route53 k8s.mylabs.dev zone Route53 k8s.mylabs.dev zone

You should also see the following KMS key:

KMS key KMS key

Create Karpenter infrastructure

Use CloudFormation to set up the infrastructure needed by the EKS cluster. See CloudFormation for a complete description of what cloudformation.yaml does for Karpenter.

Karpenter

1
2
3
4
5
6

curl -fsSL https://raw.githubusercontent.com/aws/karpenter-provider-aws/refs/heads/main/website/content/en/v1.8/getting-started/getting-started-with-karpenter/cloudformation.yaml > "${TMP_DIR}/${CLUSTER_FQDN}/cloudformation-karpenter.yml"
eval aws cloudformation deploy \
  --stack-name "${CLUSTER_NAME}-karpenter" \
  --template-file "${TMP_DIR}/${CLUSTER_FQDN}/cloudformation-karpenter.yml" \
  --capabilities CAPABILITY_NAMED_IAM \
  --parameter-overrides "ClusterName=${CLUSTER_NAME}" --tags "${TAGS//,/ }"

Create Amazon EKS

I will use eksctl to create the Amazon EKS cluster.

eksctl

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125

tee "${TMP_DIR}/${CLUSTER_FQDN}/eksctl-${CLUSTER_NAME}.yml" << EOF
apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
  name: ${CLUSTER_NAME}
  region: ${AWS_REGION}
  tags:
    karpenter.sh/discovery: ${CLUSTER_NAME}
    $(echo "${TAGS}" | sed "s/,/\\n    /g; s/=/: /g")
availabilityZones:
  - ${AWS_REGION}a
  - ${AWS_REGION}b
accessConfig:
  accessEntries:
    - principalARN: arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/admin
      accessPolicies:
        - policyARN: arn:${AWS_PARTITION}:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy
          accessScope:
            type: cluster
iam:
  withOIDC: true
  podIdentityAssociations:
    - namespace: aws-load-balancer-controller
      serviceAccountName: aws-load-balancer-controller
      roleName: eksctl-${CLUSTER_NAME}-aws-load-balancer-controller
      wellKnownPolicies:
        awsLoadBalancerController: true
    - namespace: cert-manager
      serviceAccountName: cert-manager
      roleName: eksctl-${CLUSTER_NAME}-cert-manager
      wellKnownPolicies:
        certManager: true
    - namespace: external-dns
      serviceAccountName: external-dns
      roleName: eksctl-${CLUSTER_NAME}-external-dns
      wellKnownPolicies:
        externalDNS: true
    - namespace: karpenter
      serviceAccountName: karpenter
      roleName: eksctl-${CLUSTER_NAME}-karpenter
      permissionPolicyARNs:
        - arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:policy/KarpenterControllerPolicy-${CLUSTER_NAME}
    - namespace: loki
      serviceAccountName: loki
      roleName: eksctl-${CLUSTER_NAME}-loki
      permissionPolicyARNs:
        - ${AWS_S3_ACCESS_POLICY_ARN}
    - namespace: mimir
      serviceAccountName: mimir
      roleName: eksctl-${CLUSTER_NAME}-mimir
      permissionPolicyARNs:
        - ${AWS_S3_ACCESS_POLICY_ARN}
    - namespace: tempo
      serviceAccountName: tempo
      roleName: eksctl-${CLUSTER_NAME}-tempo
      permissionPolicyARNs:
        - ${AWS_S3_ACCESS_POLICY_ARN}
    - namespace: velero
      serviceAccountName: velero
      roleName: eksctl-${CLUSTER_NAME}-velero
      permissionPolicyARNs:
        - ${AWS_S3_ACCESS_POLICY_ARN}
      permissionPolicy:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Action: [
              "ec2:DescribeVolumes",
              "ec2:DescribeSnapshots",
              "ec2:CreateTags",
              "ec2:CreateSnapshot",
              "ec2:DeleteSnapshots"
            ]
            Resource:
              - "*"
iamIdentityMappings:
  - arn: "arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/KarpenterNodeRole-${CLUSTER_NAME}"
    username: system:node:
    groups:
      - system:bootstrappers
      - system:nodes
addons:
  - name: coredns
  - name: eks-pod-identity-agent
  - name: kube-proxy
  - name: snapshot-controller
  - name: aws-ebs-csi-driver
    configurationValues: |-
      defaultStorageClass:
        enabled: true
      controller:
        extraVolumeTags:
          $(echo "${TAGS}" | sed "s/,/\\n          /g; s/=/: /g")
        loggingFormat: json
  - name: vpc-cni
    configurationValues: |-
      enableNetworkPolicy: "true"
      env:
        ENABLE_PREFIX_DELEGATION: "true"
managedNodeGroups:
  - name: mng01-ng
    amiFamily: Bottlerocket
    instanceType: t4g.medium
    desiredCapacity: 2
    availabilityZones:
      - ${AWS_REGION}a
    minSize: 2
    maxSize: 3
    volumeSize: 20
    volumeEncrypted: true
    volumeKmsKeyID: ${AWS_KMS_KEY_ID}
    privateNetworking: true
    bottlerocket:
      settings:
        kubernetes:
          seccomp-default: true
secretsEncryption:
  keyARN: ${AWS_KMS_KEY_ARN}
cloudWatch:
  clusterLogging:
    logRetentionInDays: 1
    enableTypes:
      - all
EOF
eksctl create cluster --config-file "${TMP_DIR}/${CLUSTER_FQDN}/eksctl-${CLUSTER_NAME}.yml" --kubeconfig "${KUBECONFIG}" || eksctl utils write-kubeconfig --cluster="${CLUSTER_NAME}" --kubeconfig "${KUBECONFIG}"

Enhance the security posture of the EKS cluster by addressing the following concerns:

1
2
3

AWS_VPC_ID=$(aws ec2 describe-vpcs --filters "Name=tag:alpha.eksctl.io/cluster-name,Values=${CLUSTER_NAME}" --query 'Vpcs[*].VpcId' --output text)
AWS_SECURITY_GROUP_ID=$(aws ec2 describe-security-groups --filters "Name=vpc-id,Values=${AWS_VPC_ID}" "Name=group-name,Values=default" --query 'SecurityGroups[*].GroupId' --output text)
AWS_NACL_ID=$(aws ec2 describe-network-acls --filters "Name=vpc-id,Values=${AWS_VPC_ID}" --query 'NetworkAcls[*].NetworkAclId' --output text)

  • The default security group should have no rules configured:

    1
2

    aws ec2 revoke-security-group-egress --group-id "${AWS_SECURITY_GROUP_ID}" --protocol all --port all --cidr 0.0.0.0/0 | jq || true
aws ec2 revoke-security-group-ingress --group-id "${AWS_SECURITY_GROUP_ID}" --protocol all --port all --source-group "${AWS_SECURITY_GROUP_ID}" | jq || true

  • The VPC NACL allows unrestricted SSH access, and the VPC NACL allows unrestricted RDP access:

    1
2

    aws ec2 create-network-acl-entry --network-acl-id "${AWS_NACL_ID}" --ingress --rule-number 1 --protocol tcp --port-range "From=22,To=22" --cidr-block 0.0.0.0/0 --rule-action Deny
aws ec2 create-network-acl-entry --network-acl-id "${AWS_NACL_ID}" --ingress --rule-number 2 --protocol tcp --port-range "From=3389,To=3389" --cidr-block 0.0.0.0/0 --rule-action Deny

  • The VPC should have Route 53 DNS resolver with logging enabled:

    1
2
3
4
5
6
7
8
9

    AWS_CLUSTER_LOG_GROUP_ARN=$(aws logs describe-log-groups --query "logGroups[?logGroupName=='/aws/eks/${CLUSTER_NAME}/cluster'].arn" --output text)
AWS_CLUSTER_ROUTE53_RESOLVER_QUERY_LOG_CONFIG_ID=$(aws route53resolver create-resolver-query-log-config \
  --name "${CLUSTER_NAME}-vpc-dns-logs" \
  --destination-arn "${AWS_CLUSTER_LOG_GROUP_ARN}" \
  --creator-request-id "$(uuidgen)" --query 'ResolverQueryLogConfig.Id' --output text)

aws route53resolver associate-resolver-query-log-config \
  --resolver-query-log-config-id "${AWS_CLUSTER_ROUTE53_RESOLVER_QUERY_LOG_CONFIG_ID}" \
  --resource-id "${AWS_VPC_ID}"

Prometheus Operator CRDs

Prometheus Operator CRDs provides the Custom Resource Definitions (CRDs) that define the Prometheus operator resources. These CRDs are required before installing ServiceMonitor resources.

Install the prometheus-operator-crds Helm chart to set up the necessary CRDs:

1

helm install prometheus-operator-crds oci://ghcr.io/prometheus-community/charts/prometheus-operator-crds

AWS Load Balancer Controller

The AWS Load Balancer Controller is a controller that manages Elastic Load Balancers for a Kubernetes cluster.

AWS Load Balancer Controller

Install the aws-load-balancer-controller Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12

# renovate: datasource=helm depName=aws-load-balancer-controller registryUrl=https://aws.github.io/eks-charts
AWS_LOAD_BALANCER_CONTROLLER_HELM_CHART_VERSION="1.14.1"

helm repo add --force-update eks https://aws.github.io/eks-charts
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-aws-load-balancer-controller.yml" << EOF
serviceAccount:
  name: aws-load-balancer-controller
clusterName: ${CLUSTER_NAME}
serviceMonitor:
  enabled: true
EOF
helm upgrade --install --version "${AWS_LOAD_BALANCER_CONTROLLER_HELM_CHART_VERSION}" --namespace aws-load-balancer-controller --create-namespace --wait --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-aws-load-balancer-controller.yml" aws-load-balancer-controller eks/aws-load-balancer-controller

Pod Scheduling PriorityClasses

Configure PriorityClasses to control the scheduling priority of pods in your cluster. PriorityClasses allow you to influence which pods are scheduled or evicted first when resources are constrained. These classes help ensure that critical workloads receive scheduling priority over less important workloads.

Create custom PriorityClass resources to define priority levels for different workload types:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

tee "${TMP_DIR}/${CLUSTER_FQDN}/k8s-scheduling-priorityclass.yml" << EOF | kubectl apply -f -
apiVersion: scheduling.k8s.io/v1
kind: PriorityClass
metadata:
  name: critical-priority
value: 100001000
globalDefault: false
description: "This priority class should be used for critical workloads only"
---
apiVersion: scheduling.k8s.io/v1
kind: PriorityClass
metadata:
  name: high-priority
value: 100000000
globalDefault: false
description: "This priority class should be used for high priority workloads"
EOF

Add Storage Classes and Volume Snapshots

Configure persistent storage for your EKS cluster by setting up GP3 storage classes and volume snapshot capabilities. This ensures encrypted, expandable storage with proper backup functionality.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

tee "${TMP_DIR}/${CLUSTER_FQDN}/k8s-storage-snapshot-storageclass-volumesnapshotclass.yml" << EOF | kubectl apply -f -
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: gp3
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"
provisioner: ebs.csi.aws.com
parameters:
  type: gp3
  encrypted: "true"
  kmsKeyId: ${AWS_KMS_KEY_ARN}
reclaimPolicy: Delete
allowVolumeExpansion: true
volumeBindingMode: WaitForFirstConsumer
---
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshotClass
metadata:
  name: ebs-vsc
  annotations:
    snapshot.storage.kubernetes.io/is-default-class: "true"
driver: ebs.csi.aws.com
deletionPolicy: Delete
EOF

Delete the gp2 StorageClass, as gp3 will be used instead:

1

kubectl delete storageclass gp2 || true

Karpenter

Karpenter is a Kubernetes node autoscaler built for flexibility, performance, and simplicity.

Karpenter

Install the karpenter Helm chart and customize its default values to fit your environment and storage backend:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

# renovate: datasource=github-tags depName=aws/karpenter-provider-aws
KARPENTER_HELM_CHART_VERSION="1.8.2"

tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-karpenter.yml" << EOF
serviceMonitor:
  enabled: true
settings:
  clusterName: ${CLUSTER_NAME}
  eksControlPlane: true
  interruptionQueue: ${CLUSTER_NAME}
  featureGates:
    spotToSpotConsolidation: true
EOF
helm upgrade --install --version "${KARPENTER_HELM_CHART_VERSION}" --namespace karpenter --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-karpenter.yml" karpenter oci://public.ecr.aws/karpenter/karpenter

Configure Karpenter by applying the following provisioner definition:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

tee "${TMP_DIR}/${CLUSTER_FQDN}/k8s-karpenter-nodepool.yml" << EOF | kubectl apply -f -
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: default
spec:
  amiFamily: Bottlerocket
  amiSelectorTerms:
    - alias: bottlerocket@latest
  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: "${CLUSTER_NAME}"
  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: "${CLUSTER_NAME}"
  role: "KarpenterNodeRole-${CLUSTER_NAME}"
  tags:
    Name: "${CLUSTER_NAME}-karpenter"
    $(echo "${TAGS}" | sed "s/,/\\n    /g; s/=/: /g")
  blockDeviceMappings:
    - deviceName: /dev/xvda
      ebs:
        volumeSize: 2Gi
        volumeType: gp3
        encrypted: true
        kmsKeyID: ${AWS_KMS_KEY_ARN}
    - deviceName: /dev/xvdb
      ebs:
        volumeSize: 20Gi
        volumeType: gp3
        encrypted: true
        kmsKeyID: ${AWS_KMS_KEY_ARN}
---
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default
spec:
  template:
    spec:
      requirements:
        # keep-sorted start
        - key: "topology.kubernetes.io/zone"
          operator: In
          values: ["${AWS_DEFAULT_REGION}a"]
        - key: karpenter.k8s.aws/instance-family
          operator: In
          values: ["t4g", "t3a"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["spot", "on-demand"]
        - key: kubernetes.io/arch
          operator: In
          values: ["arm64", "amd64"]
        # keep-sorted end
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default
EOF

cert-manager

cert-manager adds certificates and certificate issuers as resource types in Kubernetes clusters and simplifies the process of obtaining, renewing, and using those certificates.

cert-manager

The cert-manager ServiceAccount was created by eksctl. Install the cert-manager Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

# renovate: datasource=helm depName=cert-manager registryUrl=https://charts.jetstack.io
CERT_MANAGER_HELM_CHART_VERSION="1.19.1"

helm repo add --force-update jetstack https://charts.jetstack.io
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-cert-manager.yml" << EOF
global:
  priorityClassName: high-priority
crds:
  enabled: true
extraArgs:
  - --enable-certificate-owner-ref=true
serviceAccount:
  name: cert-manager
enableCertificateOwnerRef: true
prometheus:
  servicemonitor:
    enabled: true
EOF
helm upgrade --install --version "${CERT_MANAGER_HELM_CHART_VERSION}" --namespace cert-manager --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-cert-manager.yml" cert-manager jetstack/cert-manager

Install Velero

Velero is an open-source tool for backing up and restoring Kubernetes cluster resources and persistent volumes. It enables disaster recovery, data migration, and scheduled backups by integrating with cloud storage providers such as AWS S3.

velero

Install the velero Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

# renovate: datasource=helm depName=velero registryUrl=https://vmware-tanzu.github.io/helm-charts
VELERO_HELM_CHART_VERSION="11.1.1"

helm repo add --force-update vmware-tanzu https://vmware-tanzu.github.io/helm-charts
cat > "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-velero.yml" << EOF
initContainers:
  - name: velero-plugin-for-aws
    # renovate: datasource=docker depName=velero/velero-plugin-for-aws extractVersion=^(?<version>.+)$
    image: velero/velero-plugin-for-aws:v1.13.0
    volumeMounts:
      - mountPath: /target
        name: plugins
priorityClassName: high-priority
metrics:
  serviceMonitor:
    enabled: true
#   prometheusRule:
#     enabled: true
#     spec:
#       - alert: VeleroBackupPartialFailures
#         annotations:
#           message: Velero backup {{ \$labels.schedule }} has {{ \$value | humanizePercentage }} partially failed backups.
#         expr: velero_backup_partial_failure_total{schedule!=""} / velero_backup_attempt_total{schedule!=""} > 0.25
#         for: 15m
#         labels:
#           severity: warning
#       - alert: VeleroBackupFailures
#         annotations:
#           message: Velero backup {{ \$labels.schedule }} has {{ \$value | humanizePercentage }} failed backups.
#         expr: velero_backup_failure_total{schedule!=""} / velero_backup_attempt_total{schedule!=""} > 0.25
#         for: 15m
#         labels:
#           severity: warning
#       - alert: VeleroBackupSnapshotFailures
#         annotations:
#           message: Velero backup {{ \$labels.schedule }} has {{ \$value | humanizePercentage }} failed snapshot backups.
#         expr: increase(velero_volume_snapshot_failure_total{schedule!=""}[1h]) > 0
#         for: 15m
#         labels:
#           severity: warning
#       - alert: VeleroRestorePartialFailures
#         annotations:
#           message: Velero restore {{ \$labels.schedule }} has {{ \$value | humanizePercentage }} partially failed restores.
#         expr: increase(velero_restore_partial_failure_total{schedule!=""}[1h]) > 0
#         for: 15m
#         labels:
#           severity: warning
#       - alert: VeleroRestoreFailures
#         annotations:
#           message: Velero restore {{ \$labels.schedule }} has {{ \$value | humanizePercentage }} failed restores.
#         expr: increase(velero_restore_failure_total{schedule!=""}[1h]) > 0
#         for: 15m
#         labels:
#           severity: warning
configuration:
  backupStorageLocation:
    - name:
      provider: aws
      bucket: ${CLUSTER_FQDN}
      prefix: velero
      config:
        region: ${AWS_DEFAULT_REGION}
  volumeSnapshotLocation:
    - name:
      provider: aws
      config:
        region: ${AWS_DEFAULT_REGION}
serviceAccount:
  server:
    name: velero
credentials:
  useSecret: false
# Create scheduled backup to periodically backup the let's encrypt production resources in the "cert-manager" namespace:
schedules:
  monthly-backup-cert-manager-production:
    labels:
      letsencrypt: production
    schedule: "@monthly"
    template:
      ttl: 2160h
      includedNamespaces:
        - cert-manager
      includedResources:
        - certificates.cert-manager.io
        - secrets
      labelSelector:
        matchLabels:
          letsencrypt: production
EOF
helm upgrade --install --version "${VELERO_HELM_CHART_VERSION}" --namespace velero --create-namespace --wait --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-velero.yml" velero vmware-tanzu/velero

Restore cert-manager objects

The following steps will guide you through restoring a Let’s Encrypt production certificate, previously backed up by Velero to S3, onto a new cluster.

Initiate the restore process for the cert-manager objects.

1
2

while [ -z "$(kubectl -n velero get backupstoragelocations default -o jsonpath='{.status.lastSyncedTime}')" ]; do sleep 5; done
velero restore create --from-schedule velero-monthly-backup-cert-manager-production --labels letsencrypt=production --wait --existing-resource-policy=update

View details about the restore process:

1

velero restore describe --selector letsencrypt=production --details

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Name:         velero-monthly-backup-cert-manager-production-20251030075321
Namespace:    velero
Labels:       letsencrypt=production
Annotations:  <none>

Phase:                       Completed
Total items to be restored:  3
Items restored:              3

Started:    2025-10-30 07:53:22 +0100 CET
Completed:  2025-10-30 07:53:24 +0100 CET

Backup:  velero-monthly-backup-cert-manager-production-20250921155028

Namespaces:
  Included:  all namespaces found in the backup
  Excluded:  <none>

Resources:
  Included:        *
  Excluded:        nodes, events, events.events.k8s.io, backups.velero.io, restores.velero.io, resticrepositories.velero.io, csinodes.storage.k8s.io, volumeattachments.storage.k8s.io, backuprepositories.velero.io
  Cluster-scoped:  auto

Namespace mappings:  <none>

Label selector:  <none>

Or label selector:  <none>

Restore PVs:  auto

CSI Snapshot Restores: <none included>

Existing Resource Policy:   update
ItemOperationTimeout:       4h0m0s

Preserve Service NodePorts:  auto

Uploader config:


HooksAttempted:   0
HooksFailed:      0

Resource List:
  cert-manager.io/v1/Certificate:
    - cert-manager/ingress-cert-production(created)
  v1/Secret:
    - cert-manager/ingress-cert-production(created)
    - cert-manager/letsencrypt-production-dns(created)

Verify that the certificate was restored properly:

1

kubectl describe certificates -n cert-manager ingress-cert-production

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

Name:         ingress-cert-production
Namespace:    cert-manager
Labels:       letsencrypt=production
              velero.io/backup-name=velero-monthly-backup-cert-manager-production-20250921155028
              velero.io/restore-name=velero-monthly-backup-cert-manager-production-20251030075321
Annotations:  <none>
API Version:  cert-manager.io/v1
Kind:         Certificate
Metadata:
  Creation Timestamp:  2025-10-30T06:53:23Z
  Generation:          1
  Resource Version:    5521
  UID:                 33422558-3105-4936-87d8-468befb5dc2b
Spec:
  Common Name:  *.k01.k8s.mylabs.dev
  Dns Names:
    *.k01.k8s.mylabs.dev
    k01.k8s.mylabs.dev
  Issuer Ref:
    Group:      cert-manager.io
    Kind:       ClusterIssuer
    Name:       letsencrypt-production-dns
  Secret Name:  ingress-cert-production
  Secret Template:
    Labels:
      Letsencrypt:  production
Status:
  Conditions:
    Last Transition Time:  2025-10-30T06:53:23Z
    Message:               Certificate is up to date and has not expired
    Observed Generation:   1
    Reason:                Ready
    Status:                True
    Type:                  Ready
  Not After:               2025-12-20T10:53:07Z
  Not Before:              2025-09-21T10:53:08Z
  Renewal Time:            2025-11-20T10:53:07Z
Events:                    <none>

ExternalDNS

ExternalDNS synchronizes exposed Kubernetes Services and Ingresses with DNS providers.

ExternalDNS

ExternalDNS will manage the DNS records. The external-dns ServiceAccount was created by eksctl. Install the external-dns Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

# renovate: datasource=helm depName=external-dns registryUrl=https://kubernetes-sigs.github.io/external-dns/
EXTERNAL_DNS_HELM_CHART_VERSION="1.19.0"

helm repo add --force-update external-dns https://kubernetes-sigs.github.io/external-dns/
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-external-dns.yml" << EOF
serviceAccount:
  name: external-dns
priorityClassName: high-priority
serviceMonitor:
  enabled: true
interval: 20s
policy: sync
domainFilters:
  - ${CLUSTER_FQDN}
EOF
helm upgrade --install --version "${EXTERNAL_DNS_HELM_CHART_VERSION}" --namespace external-dns --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-external-dns.yml" external-dns external-dns/external-dns

Ingress NGINX Controller

ingress-nginx is an Ingress controller for Kubernetes that uses nginx as a reverse proxy and load balancer.

Install the ingress-nginx Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

# renovate: datasource=helm depName=ingress-nginx registryUrl=https://kubernetes.github.io/ingress-nginx
INGRESS_NGINX_HELM_CHART_VERSION="4.13.3"

helm repo add --force-update ingress-nginx https://kubernetes.github.io/ingress-nginx
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-ingress-nginx.yml" << EOF
controller:
  config:
    annotations-risk-level: Critical
    use-proxy-protocol: true
  allowSnippetAnnotations: true
  ingressClassResource:
    default: true
  extraArgs:
    default-ssl-certificate: cert-manager/ingress-cert-production
  service:
    annotations:
      # https://www.qovery.com/blog/our-migration-from-kubernetes-built-in-nlb-to-alb-controller/
      # https://www.youtube.com/watch?v=xwiRjimKW9c
      service.beta.kubernetes.io/aws-load-balancer-additional-resource-tags: ${TAGS//\'/}
      service.beta.kubernetes.io/aws-load-balancer-name: eks-${CLUSTER_NAME}
      service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
      service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
      service.beta.kubernetes.io/aws-load-balancer-target-group-attributes: proxy_protocol_v2.enabled=true
      service.beta.kubernetes.io/aws-load-balancer-type: external
    # loadBalancerClass: eks.amazonaws.com/nlb
  metrics:
    enabled: true
    serviceMonitor:
      enabled: true
  #   prometheusRule:
  #     enabled: true
  #     rules:
  #       - alert: NGINXConfigFailed
  #         expr: count(nginx_ingress_controller_config_last_reload_successful == 0) > 0
  #         for: 1s
  #         labels:
  #           severity: critical
  #         annotations:
  #           description: bad ingress config - nginx config test failed
  #           summary: uninstall the latest ingress changes to allow config reloads to resume
  #       - alert: NGINXCertificateExpiry
  #         expr: (avg(nginx_ingress_controller_ssl_expire_time_seconds{host!="_"}) by (host) - time()) < 604800
  #         for: 1s
  #         labels:
  #           severity: critical
  #         annotations:
  #           description: ssl certificate(s) will expire in less then a week
  #           summary: renew expiring certificates to avoid downtime
  #       - alert: NGINXTooMany500s
  #         expr: 100 * ( sum( nginx_ingress_controller_requests{status=~"5.+"} ) / sum(nginx_ingress_controller_requests) ) > 5
  #         for: 1m
  #         labels:
  #           severity: warning
  #         annotations:
  #           description: Too many 5XXs
  #           summary: More than 5% of all requests returned 5XX, this requires your attention
  #       - alert: NGINXTooMany400s
  #         expr: 100 * ( sum( nginx_ingress_controller_requests{status=~"4.+"} ) / sum(nginx_ingress_controller_requests) ) > 5
  #         for: 1m
  #         labels:
  #           severity: warning
  #         annotations:
  #           description: Too many 4XXs
  #           summary: More than 5% of all requests returned 4XX, this requires your attention
  priorityClassName: critical-priority
EOF
helm upgrade --install --version "${INGRESS_NGINX_HELM_CHART_VERSION}" --namespace ingress-nginx --create-namespace --wait --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-ingress-nginx.yml" ingress-nginx ingress-nginx/ingress-nginx

Loki

Grafana Loki is a horizontally-scalable, highly-available, multi-tenant log aggregation system inspired by Prometheus. It is designed to be very cost-effective and easy to operate, as it does not index the contents of the logs, but rather a set of labels for each log stream.

Grafana Loki

Install the loki Helm chart and customize its default values to fit your environment and storage requirements:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77

# renovate: datasource=helm depName=loki registryUrl=https://grafana.github.io/helm-charts
LOKI_HELM_CHART_VERSION="6.45.2"

helm repo add --force-update grafana https://grafana.github.io/helm-charts
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-loki.yml" << EOF
global:
  priorityClassName: high-priority
deploymentMode: SingleBinary
loki:
  auth_enabled: false
  commonConfig:
    replication_factor: 2
  storage:
    bucketNames:
      chunks: ${CLUSTER_FQDN}
      ruler: ${CLUSTER_FQDN}
      admin: ${CLUSTER_FQDN}
    s3:
      region: ${AWS_REGION}
      endpoint: s3.${AWS_REGION}.amazonaws.com
    object_store:
      storage_prefix: ruzickap
      s3:
        endpoint: s3.${AWS_REGION}.amazonaws.com
        region: ${AWS_REGION}
  schemaConfig:
    configs:
      - from: 2024-04-01
        store: tsdb
        object_store: s3
        schema: v13
        index:
          prefix: loki_index_
          period: 24h
  storage_config:
    aws:
      region: ${AWS_REGION}
      # bucketnames: loki-chunk
      # bucketnames: loki-chunk
      # s3forcepathstyle: false
      # s3: s3://s3.${AWS_REGION}.amazonaws.com/loki-storage
      # endpoint: s3.${AWS_REGION}.amazonaws.com
  limits_config:
    retention_period: 1w
  # Log retention in Loki is achieved through the Compactor (https://grafana.com/docs/loki/v3.5.x/get-started/components/#compactor)
  # compactor:
  #   delete_request_store: s3
  #   retention_enabled: true
ingress:
  enabled: true
  ingressClassName: nginx
  annotations:
    gethomepage.dev/enabled: "true"
    gethomepage.dev/description: A horizontally-scalable, highly-available log aggregation system
    gethomepage.dev/group: Apps
    gethomepage.dev/icon: https://raw.githubusercontent.com/grafana/loki/5a8bc848dbe453ce27576d2058755a90f79d07b6/docs/sources/logo.png
    gethomepage.dev/name: Loki
    nginx.ingress.kubernetes.io/auth-url: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/auth
    nginx.ingress.kubernetes.io/auth-signin: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/start?rd=\$scheme://\$host\$request_uri
  hosts:
    - loki.${CLUSTER_FQDN}
  tls:
    - hosts:
        - loki.${CLUSTER_FQDN}
singleBinary:
  replicas: 2
backend:
  replicas: 0
read:
  replicas: 0
write:
  replicas: 0
# https://blog.devgenius.io/install-loki-in-distributed-mode-on-azure-aks-with-terraform-0918803f2ed0
ruler:
  enabled: false
EOF
helm upgrade --install --version "${LOKI_HELM_CHART_VERSION}" --namespace loki --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-loki.yml" loki grafana/loki

Mimir

Grafana Mimir is an open source, horizontally scalable, multi-tenant time series database for Prometheus metrics, designed for high availability and cost efficiency. It enables you to centralize metrics from multiple clusters or environments, and integrates seamlessly with Grafana dashboards for visualization and alerting.

Grafana Mimir

Install the mimir-distributed Helm chart and customize its default values to fit your environment and storage backend:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

# renovate: datasource=helm depName=mimir-distributed registryUrl=https://grafana.github.io/helm-charts
MIMIR_DISTRIBUTED_HELM_CHART_VERSION="6.0.3"

helm repo add --force-update grafana https://grafana.github.io/helm-charts
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-mimir-distributed.yml" << EOF
serviceAccount:
  name: mimir
mimir:
  structuredConfig:
    limits:
      compactor_blocks_retention_period: 30d
      # {"ts":"2025-11-04T19:30:40.472926117Z","level":"error","msg":"non-recoverable error","component_path":"/","component_id":"prometheus.remote_write.mimir","subcomponent":"rw","remote_name":"5b0906","url":"http://mimir-gateway.mimir.svc.cluster.local/api/v1/push","failedSampleCount":2000,"failedHistogramCount":0,"failedExemplarCount":0,"err":"server returned HTTP status 400 Bad Request: received a series whose number of labels exceeds the limit (actual: 31, limit: 30) series: 'karpenter_nodes_allocatable{arch=\"amd64\", capacity_type=\"spot\", container=\"controller\", endpoint=\"http-metrics\", instance=\"192.168.92.152:8080\", instance_capability_flex=\"false\", instance_category=\"t\"…' (err-mimir-max-label-names-per-series). To adjust the related per-tenant limit, configure -validation.max-label-names-per-series, or contact your service administrator.\n"}
      max_label_names_per_series: 50
    common:
      # https://grafana.com/docs/mimir/v2.17.x/configure/configuration-parameters/
      storage:
        backend: s3
        s3:
          endpoint: s3.${AWS_REGION}.amazonaws.com
          region: ${AWS_REGION}
          storage_class: ONEZONE_IA
    alertmanager_storage:
      s3:
        bucket_name: ${CLUSTER_FQDN}
      storage_prefix: mimiralertmanager
    blocks_storage:
      s3:
        bucket_name: ${CLUSTER_FQDN}
      storage_prefix: mimirblocks
    ruler_storage:
      s3:
        bucket_name: ${CLUSTER_FQDN}
      storage_prefix: mimirruler
ingester:
  replicas: 2
# https://github.com/grafana/helm-charts/blob/main/charts/rollout-operator/values.yaml
rollout_operator:
  serviceMonitor:
    enabled: true
minio:
  enabled: false
EOF
helm upgrade --install --version "${MIMIR_DISTRIBUTED_HELM_CHART_VERSION}" --namespace mimir --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-mimir-distributed.yml" mimir grafana/mimir-distributed

Tempo

Grafana Tempo is an open source, easy-to-use, and high-scale distributed tracing backend. It is designed to be cost-effective and simple to operate, as it only requires object storage to operate its backend and does not index the trace data.

Grafana Tempo

Install the tempo Helm chart and customize its default values to fit your environment and storage requirements:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

# renovate: datasource=helm depName=tempo registryUrl=https://grafana.github.io/helm-charts
TEMPO_HELM_CHART_VERSION="1.52.7"

helm repo add --force-update grafana https://grafana.github.io/helm-charts
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-tempo.yml" << EOF
global:
  priorityClassName: high-priority
# https://youtu.be/PmE9mgYaoQA?t=817
metricsGenerator:
  enabled: true
storage:
  trace:
    backend: s3
    s3:
      bucket: ${CLUSTER_FQDN}
      endpoint: s3.${AWS_REGION}.amazonaws.com
  admin:
    backend: s3
    s3:
      bucket_name: ${CLUSTER_FQDN}
      endpoint: s3.${AWS_REGION}.amazonaws.com
traces:
  otlp:
    http:
      enabled: true
    grpc:
      enabled: true
metricsGenerator:
  enabled: true
  config:
    # processor:
    #   # https://grafana.com/docs/tempo/latest/operations/traceql-metrics/
    #   local_blocks:
    #     filter_server_spans: false
    storage:
      remote_write:
        - url: http://mimir-gateway.mimir.svc.cluster.local/api/v1/push

EOF
helm upgrade --install --version "${TEMPO_HELM_CHART_VERSION}" --namespace tempo --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-tempo.yml" tempo grafana/tempo-distributed

Alloy

Grafana Alloy is an open source, vendor-neutral distribution of OpenTelemetry that provides a unified way to collect, process, and export telemetry data (traces, metrics, and logs) from your infrastructure and applications.

Grafana Alloy

Install the alloy Helm chart and customize its default values to fit your environment and monitoring needs:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406

# renovate: datasource=helm depName=alloy registryUrl=https://grafana.github.io/helm-charts
ALLOY_HELM_CHART_VERSION="1.4.0"

# https://github.com/ai-cfia/howard-on-prem/blob/main/monitoring/grafana-alloy/helm/values.yaml
# https://github.com/hongbo-miao/hongbomiao.com/blob/main/kubernetes/argo-cd/projects/production-hm/alloy/manifests/hm-alloy-application.yaml
# https://github.com/RS-PYTHON/rs-infra-monitoring/blob/0cc043e9398edd80b91b3ac8768f5a8ab7fce26e/apps/alloy/values.yaml#L47
# https://stackoverflow.com/questions/79695474/grafana-alloy-no-prefect-pod-logs-on-bottlerocket
# https://developer-friendly.blog/blog/2025/03/17/migration-from-promtail-to-alloy-the-what-the-why-and-the-how/#collect-prometheus-metrics
helm repo add --force-update grafana https://grafana.github.io/helm-charts
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-alloy.yml" << EOF
alloy:
  configMap:
    content: |-
      logging {
        level = "info"
        format = "json"
      }

      // ##########################################
      // # Beyla
      // ##########################################

      beyla.ebpf "default" {
        attributes {
          kubernetes {
            enable = "true"
            cluster_name = "${CLUSTER_NAME}"
          }
        }

        discovery {
          instrument {
            open_ports = "80,443"
          }
          instrument {
            kubernetes {
              namespace = "ingress-nginx"
            }
          }
        }

        metrics {
          features = [
            "application",
            "application_process",
            "application_service_graph",
            "application_span",
            "network",
          ]
        }

        output {
          traces = [otelcol.exporter.otlp.tempo.input]
        }
      }

      prometheus.scrape "beyla" {
        targets      = beyla.ebpf.default.targets
        honor_labels = true
        forward_to   = [prometheus.remote_write.mimir.receiver]
      }

      // ##########################################
      // # Tempo
      // ##########################################

      otelcol.processor.batch "default" {
        output {
          metrics = [otelcol.exporter.prometheus.default.input]
          logs    = [otelcol.exporter.loki.default.input]
          traces  = [otelcol.exporter.otlp.tempo.input]
        }
      }

      otelcol.connector.spanmetrics "default" {
        dimension {
          name = "http.status_code"
        }
        dimension {
          name = "http.method"
          default = "GET"
        }
        aggregation_temporality = "DELTA"
        histogram {
          unit = "s"
          explicit {
            buckets = ["333ms", "777s", "999h"]
          }
        }
        metrics_flush_interval = "33s"
        namespace = "default"
        output {
          metrics = [otelcol.processor.batch.default.input]
        }
      }

      otelcol.connector.spanlogs "default" {
        roots = true
        output {
          logs = [otelcol.processor.batch.default.input]
        }
      }

      otelcol.connector.servicegraph "default" {
        dimensions = ["http.method", "http.target"]
        output {
          metrics = [otelcol.processor.batch.default.input]
        }
      }

      otelcol.receiver.otlp "default" {
        // configures the default grpc endpoint "0.0.0.0:4317"
        grpc { endpoint = "0.0.0.0:4317" }
        // configures the default http/protobuf endpoint "0.0.0.0:4318"
        http { endpoint = "0.0.0.0:4318" }

        output {
          metrics = [otelcol.processor.batch.default.input]
          logs    = [otelcol.processor.batch.default.input]
          traces = [
            otelcol.connector.servicegraph.default.input,
            otelcol.connector.spanlogs.default.input,
            otelcol.connector.spanmetrics.default.input,
          ]
        }
      }

      otelcol.auth.headers "tempo" {
        header {
          key   = "X-Scope-OrgID"
          value = "1"
        }
      }
      otelcol.exporter.otlp "tempo" {
        client {
          endpoint = "tempo-distributor.tempo.svc.cluster.local:4317"
          auth = otelcol.auth.headers.tempo.handler
          tls {
            insecure = true
          }
        }
      }

      otelcol.exporter.loki "default" {
        forward_to = [loki.write.default.receiver]
      }

      otelcol.exporter.prometheus "default" {
        forward_to = [prometheus.remote_write.mimir.receiver]
      }

      // ##########################################
      // # Loki
      // ##########################################

      // ========= Pod logs (via K8s API) =========

      // discovery.kubernetes allows you to find scrape targets from Kubernetes resources.
      // It watches cluster state and ensures targets are continually synced with what is currently running in your cluster.
      // https://grafana.com/docs/alloy/v1.11/reference/components/discovery/discovery.kubernetes/
      discovery.kubernetes "pod" {
        role = "pod"
        // Restrict to pods on the node to reduce cpu & memory usage
        // https://grafana.com/docs/alloy/v1.11/reference/components/discovery/discovery.kubernetes/#limit-to-only-pods-on-the-same-node
        selectors {
          role = "pod"
          field = "spec.nodeName=" + coalesce(sys.env("HOSTNAME"), constants.hostname)
        }
      }

      // discovery.relabel rewrites the label set of the input targets by applying one or more relabeling rules.
      // If no rules are defined, then the input targets are exported as-is.
      // https://grafana.com/docs/alloy/v1.11/reference/components/loki/loki.relabel/
      discovery.relabel "pod_logs" {
        targets = discovery.kubernetes.pod.targets

        //* Label creation - "namespace" field from "__meta_kubernetes_namespace"
        rule {
          source_labels = ["__meta_kubernetes_namespace"]
          target_label = "namespace"
        }
        //* Label creation - "pod" field from "__meta_kubernetes_pod_name"
        rule {
          source_labels = ["__meta_kubernetes_pod_name"]
          target_label = "pod"
        }
        //* Label creation - "container" field from "__meta_kubernetes_pod_container_name"
        rule {
          source_labels = ["__meta_kubernetes_pod_container_name"]
          target_label = "container"
        }
        //* Label creation -  "app" field from "__meta_kubernetes_pod_label_app_kubernetes_io_name"
        rule {
          source_labels = ["__meta_kubernetes_pod_label_app_kubernetes_io_name"]
          target_label = "app"
        }
        //* Label creation -  "job" field from "__meta_kubernetes_namespace" and "__meta_kubernetes_pod_container_name"
        // Concatenate values __meta_kubernetes_namespace/__meta_kubernetes_pod_container_name
        rule {
          source_labels = ["__meta_kubernetes_namespace", "__meta_kubernetes_pod_container_name"]
          target_label = "job"
          separator = "/"
        }
        //* Label creation - "container" field from "__meta_kubernetes_pod_uid" and "__meta_kubernetes_pod_container_name"
        // Concatenate values __meta_kubernetes_pod_uid/__meta_kubernetes_pod_container_name.log
        rule {
          source_labels = ["__meta_kubernetes_pod_uid", "__meta_kubernetes_pod_container_name"]
          target_label = "__path__"
          separator = "/"
          replacement = "/var/log/pods/*\$1/*.log"
        }
        //* Label creation -  "container_runtime" field from "__meta_kubernetes_pod_container_id"
        rule {
          source_labels = ["__meta_kubernetes_pod_container_id"]
          target_label = "container_runtime"
          regex = "^(\\\S+):\\\/\\\/.+$"
        }
        // Label creation - "node_name" field from "__meta_kubernetes_pod_node_name"
        rule {
          source_labels = ["__meta_kubernetes_pod_node_name"]
          target_label = "node_name"
        }
        // Label creation -  "component" field from "__meta_kubernetes_pod_label_app_kubernetes_io_component" and "__meta_kubernetes_pod_label_component"
        rule {
          source_labels = ["__meta_kubernetes_pod_label_app_kubernetes_io_component", "__meta_kubernetes_pod_label_component"]
          target_label = "component"
          regex = "^;*([^;]+)(;.*)?$"
        }
      }

      // loki.process receives log entries from other Loki components, applies one or more processing stages,
      // and forwards the results to the list of receivers in the component's arguments.
      loki.process "pod_logs" {
        stage.cri {}
        stage.decolorize {}
        forward_to = [loki.write.default.receiver]
      }

      // loki.source.kubernetes tails logs from Kubernetes containers using the Kubernetes API.
      // https://grafana.com/docs/alloy/v1.11/reference/components/loki/loki.source.kubernetes/
      loki.source.kubernetes "pod_logs" {
        targets    = discovery.relabel.pod_logs.output
        forward_to = [loki.process.pod_logs.receiver]
      }

      // ========= Kubernetes Events =========

      // loki.source.kubernetes_events tails events from the Kubernetes API and converts them
      // into log lines to forward to other Loki components.
      // https://grafana.com/docs/alloy/v1.11/reference/components/loki/loki.source.kubernetes_events/
      loki.source.kubernetes_events "cluster_events" {
        job_name   = "integrations/kubernetes/eventhandler"
        // log_format = "json"
        forward_to = [
          loki.process.cluster_events.receiver,
        ]
      }

      // loki.process receives log entries from other loki components, applies one or more processing stages,
      // and forwards the results to the list of receivers in the component's arguments.
      loki.process "cluster_events" {
        forward_to = [loki.write.default.receiver]
        stage.static_labels {
          values = {
            cluster = "${CLUSTER_NAME}",
          }
        }
        stage.labels {
          values = {
            kubernetes_cluster_events = "job",
          }
        }
      }

      // https://grafana.com/docs/alloy/v1.11/reference/components/loki/loki.write/
      loki.write "default" {
        endpoint {
          url = "http://loki-gateway.loki.svc.cluster.local/loki/api/v1/push"
          tenant_id = "1"
        }
      }

      // #####################
      // # Mimir / Prometheus
      // #####################


      // prometheus.exporter.cadvisor "cadvisor" {
      //   allowlisted_container_labels = ["io.kubernetes.container.name", "io.kubernetes.pod.namespace", "io.kubernetes.pod.name"]
      //   enabled_metrics = ["cpu", "memory"]
      // }

      prometheus.exporter.unix "default" {
        // https://github.com/aws/karpenter-provider-aws/issues/5406
        // https://github.com/prometheus/node_exporter/issues/2692
        // udev_data_path = "/rootfs/run/udev/data"
      }


      prometheus.scrape "scrape_metrics" {
        targets         = prometheus.exporter.unix.default.targets
        forward_to      = [prometheus.remote_write.mimir.receiver]
        scrape_interval = "10s"
      }

      // Scrape service monitors (clustered to avoid duplicates)
      prometheus.operator.servicemonitors "default" {
        clustering {
          enabled = true
        }
        forward_to = [prometheus.remote_write.mimir.receiver]
      }

      // Scrape pod monitors (clustered to avoid duplicates)
      prometheus.operator.podmonitors "pods" {
        clustering {
          enabled = true
        }
        forward_to = [prometheus.remote_write.mimir.receiver]
      }

      // Scrape every probe (clustered to avoid duplicates)
      prometheus.operator.probes "probes" {
        clustering {
          enabled = true
        }
        forward_to = [prometheus.remote_write.mimir.receiver]
      }

      // Expose a blackbox exporter locally so that probes can use the local exporter as a target
      prometheus.exporter.blackbox "blackbox" {
        config = "{ modules: { http_2xx: { prober: http, timeout: 5s } } }"
        targets = [
          {
            name    = "oauth2-proxy",
            address = "https://oauth2-proxy.${CLUSTER_FQDN}",
            module  = "http_2xx",
          },
        ]
      }



      // ##########################################
      // # Common configuration
      // ##########################################

      prometheus.remote_write "mimir" {
        endpoint {
          url = "http://mimir-gateway.mimir.svc.cluster.local/api/v1/push"
          headers = {
            "X-Scope-OrgID" = "1",
          }
        }
      }

  extraPorts:
    - name: otlp-grpc
      port: 4317
      targetPort: 4317
      protocol: TCP
    - name: otlp-http
      port: 4318
      targetPort: 4318
      protocol: TCP
  mounts:
    varlog: true
  # https://stackoverflow.com/questions/79400979/cannot-see-any-traces-from-alloy-in-grafana/79446696#79446696
  securityContext:
    appArmorProfile:
      type: Unconfined
    runAsUser: 0
    capabilities:
      drop:
        - ALL
      add:
        - BPF
        - CHECKPOINT_RESTORE
        - DAC_READ_SEARCH
        - NET_RAW
        - PERFMON
        - SYS_ADMIN
        - SYS_PTRACE
controller:
  priorityClassName: system-node-critical
serviceMonitor:
  enabled: true
ingress:
  enabled: true
  ingressClassName: nginx
  annotations:
    gethomepage.dev/enabled: "true"
    gethomepage.dev/description: OpenTelemetry Collector distribution with programmable pipelines
    gethomepage.dev/group: Apps
    gethomepage.dev/icon: https://raw.githubusercontent.com/grafana/alloy/513175e2add3957310a445a7b683100b703a9b49/docs/sources/assets/alloy_icon_orange.svg
    gethomepage.dev/name: Alloy
    nginx.ingress.kubernetes.io/auth-url: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/auth
    nginx.ingress.kubernetes.io/auth-signin: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/start?rd=\$scheme://\$host\$request_uri
  faroPort: 12345
  hosts:
    - alloy.${CLUSTER_FQDN}
  tls:
    - hosts:
        - alloy.${CLUSTER_FQDN}
EOF
helm upgrade --install --version "${ALLOY_HELM_CHART_VERSION}" --namespace alloy --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-alloy.yml" alloy grafana/alloy

Beyla

Grafana Beyla

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

# renovate: datasource=helm depName=beyla registryUrl=https://grafana.github.io/helm-charts
BEYLA_HELM_CHART_VERSION="1.4.0"
helm repo add --force-update grafana https://grafana.github.io/helm-charts
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-beyla.yml" << EOF
priorityClassName: system-node-critical
config:
  data:
    discovery:
      instrument:
        - open_ports: 443
    otel_metrics_export:
      endpoint: http://alloy.alloy.svc.cluster.local:4317
      protocol: grpc
    otel_traces_export:
      endpoint: http://alloy.alloy.svc.cluster.local:4317
      protocol: grpc
    attributes:
      select:
        beyla_network_flow_bytes:
          include:
            - k8s.src.owner.name
            - k8s.src.namespace
            - k8s.dst.owner.name
            - k8s.dst.namespace
            - k8s.cluster.name
            - src.zone
            - dst.zone
    network:
      enable: true
env:
  BEYLA_KUBE_CLUSTER_NAME: ${CLUSTER_NAME}
serviceMonitor:
  enabled: true
EOF
helm upgrade --install --version "${BEYLA_HELM_CHART_VERSION}" --namespace beyla --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-beyla.yml" beyla grafana/beyla

Mailpit

Mailpit will be used to receive email alerts from Prometheus.

mailpit

Install the mailpit Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

# renovate: datasource=helm depName=mailpit registryUrl=https://jouve.github.io/charts/
MAILPIT_HELM_CHART_VERSION="0.29.2"

helm repo add --force-update jouve https://jouve.github.io/charts/
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-mailpit.yml" << EOF
replicaCount: 2
affinity:
  podAntiAffinity:
    requiredDuringSchedulingIgnoredDuringExecution:
      - labelSelector:
          matchExpressions:
            - key: app.kubernetes.io/name
              operator: In
              values:
                - mailpit
        topologyKey: kubernetes.io/hostname
ingress:
  enabled: true
  ingressClassName: nginx
  annotations:
    gethomepage.dev/enabled: "true"
    gethomepage.dev/description: An email and SMTP testing tool with API for developers
    gethomepage.dev/group: Apps
    gethomepage.dev/icon: https://raw.githubusercontent.com/axllent/mailpit/61241f11ac94eb33bd84e399129992250eff56ce/server/ui/favicon.svg
    gethomepage.dev/name: Mailpit
    nginx.ingress.kubernetes.io/auth-url: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/auth
    nginx.ingress.kubernetes.io/auth-signin: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/start?rd=\$scheme://\$host\$request_uri
  hostname: mailpit.${CLUSTER_FQDN}
EOF
helm upgrade --install --version "${MAILPIT_HELM_CHART_VERSION}" --namespace mailpit --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-mailpit.yml" mailpit jouve/mailpit
kubectl label namespace mailpit pod-security.kubernetes.io/enforce=baseline

Screenshot:

Mailpit

Grafana

Grafana is an open-source analytics and monitoring platform that allows you to query, visualize, alert on, and understand your metrics, logs, and traces. It provides a powerful and flexible way to create dashboards and visualizations for monitoring your Kubernetes cluster and applications.

Grafana

Install the grafana Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313

# renovate: datasource=helm depName=grafana registryUrl=https://grafana.github.io/helm-charts
GRAFANA_HELM_CHART_VERSION="10.1.4"

helm repo add --force-update grafana https://grafana.github.io/helm-charts
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-grafana.yml" << EOF
serviceMonitor:
  enabled: true
ingress:
  enabled: true
  ingressClassName: nginx
  annotations:
    gethomepage.dev/description: Visualization Platform
    gethomepage.dev/enabled: "true"
    gethomepage.dev/group: Observability
    gethomepage.dev/icon: grafana.svg
    gethomepage.dev/name: Grafana
    gethomepage.dev/app: grafana
    gethomepage.dev/pod-selector: "app.kubernetes.io/name=grafana"
    nginx.ingress.kubernetes.io/auth-url: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/auth
    nginx.ingress.kubernetes.io/auth-signin: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/start?rd=\$scheme://\$host\$request_uri
    nginx.ingress.kubernetes.io/configuration-snippet: |
      auth_request_set \$email \$upstream_http_x_auth_request_email;
      proxy_set_header X-Email \$email;
  path: /
  pathType: Prefix
  hosts:
    - grafana.${CLUSTER_FQDN}
  tls:
    - hosts:
        - grafana.${CLUSTER_FQDN}
datasources:
  datasources.yaml:
    apiVersion: 1
    datasources:
      - name: Mimir
        type: prometheus
        url: http://mimir-gateway.mimir.svc.cluster.local/prometheus
        access: proxy
        editable: true
        isDefault: true
        jsonData:
          prometheusType: Mimir
          prometheusVersion: 2.9.1
          httpHeaderName1: X-Scope-OrgID
        secureJsonData:
          httpHeaderValue1: 1
      - name: Loki
        type: loki
        url: http://loki-gateway.loki.svc.cluster.local/
        access: proxy
        editable: true
        jsonData:
          httpHeaderName1: X-Scope-OrgID
        secureJsonData:
          httpHeaderValue1: "1"
      - name: Tempo
        type: tempo
        url: http://tempo-query-frontend.tempo.svc.cluster.local:3200
        access: proxy
        editable: true
notifiers:
  notifiers.yaml:
    notifiers:
    - name: email-notifier
      type: email
      uid: email1
      org_id: 1
      is_default: true
      settings:
        addresses: ${MY_EMAIL}
dashboardProviders:
  dashboardproviders.yaml:
    apiVersion: 1
    providers:
      - name: "default"
        orgId: 1
        folder: ""
        type: file
        disableDeletion: false
        editable: false
        options:
          path: /var/lib/grafana/dashboards/default
dashboards:
  default:
    # keep-sorted start numeric=yes

    1860-node-exporter-full:
      # renovate: depName="Node Exporter Full"
      gnetId: 1860
      revision: 37
      datasource: Prometheus
    # 19105-prometheus:
    #   # renovate: depName="Prometheus"
    #   gnetId: 19105
    #   revision: 6
    #   datasource: Prometheus
    # 19268-prometheus:
    #   # renovate: depName="Prometheus All Metrics"
    #   gnetId: 19268
    #   revision: 1
    #   datasource: Prometheus
    # 20340-cert-manager:
    #   # renovate: depName="cert-manager"
    #   gnetId: 20340
    #   revision: 1
    #   datasource: Prometheus
    # 20842-cert-manager-kubernetes:
    #   # renovate: depName="Cert-manager-Kubernetes"
    #   gnetId: 20842
    #   revision: 1
    #   datasource: Prometheus
    9923-beyla-red-metrics:
      # renovate: depName="Beyla RED Metrics"
      gnetId: 9923
      revision: 3
      datasource: Prometheus
    # 3662-prometheus-2-0-overview:
    #   # renovate: depName="Prometheus 2.0 Overview"
    #   gnetId: 3662
    #   revision: 2
    #   datasource: Prometheus
    # 9614-nginx-ingress-controller:
    #   # renovate: depName="NGINX Ingress controller"
    #   gnetId: 9614
    #   revision: 1
    #   datasource: Prometheus
    # 12006-kubernetes-apiserver:
    #   # renovate: depName="Kubernetes apiserver"
    #   gnetId: 12006
    #   revision: 1
    #   datasource: Prometheus
    # # https://github.com/DevOps-Nirvana/Grafana-Dashboards
    # 14314-kubernetes-nginx-ingress-controller-nextgen-devops-nirvana:
    #   # renovate: depName="Kubernetes Nginx Ingress Prometheus NextGen"
    #   gnetId: 14314
    #   revision: 2
    #   datasource: Prometheus
    # 15038-external-dns:
    #   # renovate: depName="External-dns"
    #   gnetId: 15038
    #   revision: 3
    #   datasource: Prometheus
    15757-kubernetes-views-global:
      # renovate: depName="Kubernetes / Views / Global"
      gnetId: 15757
      revision: 42
      datasource: Prometheus
    15758-kubernetes-views-namespaces:
      # renovate: depName="Kubernetes / Views / Namespaces"
      gnetId: 15758
      revision: 41
      datasource: Prometheus
    15759-kubernetes-views-nodes:
      # renovate: depName="Kubernetes / Views / Nodes"
      gnetId: 15759
      revision: 40
      datasource: Prometheus
    # https://grafana.com/orgs/imrtfm/dashboards - https://github.com/dotdc/grafana-dashboards-kubernetes
    15760-kubernetes-views-pods:
      # renovate: depName="Kubernetes / Views / Pods"
      gnetId: 15760
      revision: 37
      datasource: Prometheus
    15761-kubernetes-system-api-server:
      # renovate: depName="Kubernetes / System / API Server"
      gnetId: 15761
      revision: 18
      datasource: Prometheus
    16006-mimir-alertmanager-resources:
      # renovate: depName="Mimir / Alertmanager resources"
      gnetId: 16006
      revision: 17
      datasource: Prometheus
    16007-mimir-alertmanager:
      # renovate: depName="Mimir / Alertmanager"
      gnetId: 16007
      revision: 17
      datasource: Prometheus
    16008-mimir-compactor-resources:
      # renovate: depName="Mimir / Compactor resources"
      gnetId: 16008
      revision: 17
      datasource: Prometheus
    16009-mimir-compactor:
      # renovate: depName="Mimir / Compactor"
      gnetId: 16009
      revision: 17
      datasource: Prometheus
    16010-mimir-config:
      # renovate: depName="Mimir / Config"
      gnetId: 16010
      revision: 17
      datasource: Prometheus
    16011-mimir-object-store:
      # renovate: depName="Mimir / Object Store"
      gnetId: 16011
      revision: 17
      datasource: Prometheus
    16012-mimir-overrides:
      # renovate: depName="Mimir / Overrides"
      gnetId: 16012
      revision: 17
      datasource: Prometheus
    16013-mimir-queries:
      # renovate: depName="Mimir / Queries"
      gnetId: 16013
      revision: 17
      datasource: Prometheus
    16014-mimir-reads-networking:
      # renovate: depName="Mimir / Reads networking"
      gnetId: 16014
      revision: 17
      datasource: Prometheus
    16015-mimir-reads-resources:
      # renovate: depName="Mimir / Reads resources"
      gnetId: 16015
      revision: 17
      datasource: Prometheus
    16016-mimir-reads:
      # renovate: depName="Mimir / Reads"
      gnetId: 16016
      revision: 17
      datasource: Prometheus
    16017-mimir-rollout-progress:
      # renovate: depName="Mimir / Rollout progress"
      gnetId: 16017
      revision: 17
      datasource: Prometheus
    16018-mimir-ruler:
      # renovate: depName="Mimir / Ruler"
      gnetId: 16018
      revision: 17
      datasource: Prometheus
    16019-mimir-scaling:
      # renovate: depName="Mimir / Scaling"
      gnetId: 16019
      revision: 17
      datasource: Prometheus
    16020-mimir-slow-queries:
      # renovate: depName="Mimir / Slow queries"
      gnetId: 16020
      revision: 17
      datasource: Prometheus
    16021-mimir-tenants:
      # renovate: depName="Mimir / Tenants"
      gnetId: 16021
      revision: 17
      datasource: Prometheus
    16022-mimir-top-tenants:
      # renovate: depName="Mimir / Top tenants"
      gnetId: 16022
      revision: 16
      datasource: Prometheus
    16023-mimir-writes-networking:
      # renovate: depName="Mimir / Writes networking"
      gnetId: 16023
      revision: 16
      datasource: Prometheus
    16024-mimir-writes-resources:
      # renovate: depName="Mimir / Writes resources"
      gnetId: 16024
      revision: 17
      datasource: Prometheus
    16026-mimir-writes:
      # renovate: depName="Mimir / Writes"
      gnetId: 16022
      revision: 17
      datasource: Prometheus
    17605-mimir-overview-networking:
      # renovate: depName="Mimir / Overview networking"
      gnetId: 17605
      revision: 13
      datasource: Prometheus
    17606-mimir-overview-resources:
      # renovate: depName="Mimir / Overview resources"
      gnetId: 17606
      revision: 13
      datasource: Prometheus
    17607-mimir-overview:
      # renovate: depName="Mimir / Overview"
      gnetId: 17607
      revision: 13
      datasource: Prometheus
    17608-mimir-remote-ruler-reads:
      # renovate: depName="Mimir / Remote ruler reads"
      gnetId: 17608
      revision: 13
      datasource: Prometheus
    17609-mimir-remote-ruler-reads-resources:
      # renovate: depName="Mimir / Remote ruler reads resources"
      gnetId: 17609
      revision: 13
      datasource: Prometheus
    # keep-sorted end
grafana.ini:
  analytics:
    check_for_updates: false
  auth.basic:
    enabled: false
  auth.proxy:
    enabled: true
    header_name: X-Email
    header_property: email
  users:
    auto_assign_org_role: Admin
smtp:
  enabled: true
  host: mailpit-smtp.mailpit.svc.cluster.local:25
  from_address: grafana@${CLUSTER_FQDN}
networkPolicy:
  enabled: true
EOF
helm upgrade --install --version "${GRAFANA_HELM_CHART_VERSION}" --namespace grafana --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-grafana.yml" grafana grafana/grafana

OAuth2 Proxy

Use OAuth2 Proxy to protect application endpoints with Google Authentication.

OAuth2 Proxy

Install the oauth2-proxy Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

# renovate: datasource=helm depName=oauth2-proxy registryUrl=https://oauth2-proxy.github.io/manifests
OAUTH2_PROXY_HELM_CHART_VERSION="8.3.2"

helm repo add --force-update oauth2-proxy https://oauth2-proxy.github.io/manifests
tee "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-oauth2-proxy.yml" << EOF
config:
  clientID: ${GOOGLE_CLIENT_ID}
  clientSecret: ${GOOGLE_CLIENT_SECRET}
  cookieSecret: "$(openssl rand -base64 32 | head -c 32 | base64)"
  configFile: |-
    cookie_domains = ".${CLUSTER_FQDN}"
    set_authorization_header = "true"
    set_xauthrequest = "true"
    upstreams = [ "file:///dev/null" ]
    whitelist_domains = ".${CLUSTER_FQDN}"
authenticatedEmailsFile:
  enabled: true
  restricted_access: |-
    ${MY_EMAIL}
ingress:
  enabled: true
  ingressClassName: nginx
  annotations:
    gethomepage.dev/enabled: "true"
    gethomepage.dev/description: A reverse proxy that provides authentication with Google, Azure, OpenID Connect and many more identity providers
    gethomepage.dev/group: Cluster Management
    gethomepage.dev/icon: https://raw.githubusercontent.com/oauth2-proxy/oauth2-proxy/899c743afc71e695964165deb11f50b9a0703c97/docs/static/img/logos/OAuth2_Proxy_icon.svg
    gethomepage.dev/name: OAuth2-Proxy
  hosts:
    - oauth2-proxy.${CLUSTER_FQDN}
  tls:
    - hosts:
        - oauth2-proxy.${CLUSTER_FQDN}
priorityClassName: critical-priority
metrics:
  servicemonitor:
    enabled: true
EOF
helm upgrade --install --version "${OAUTH2_PROXY_HELM_CHART_VERSION}" --namespace oauth2-proxy --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-oauth2-proxy.yml" oauth2-proxy oauth2-proxy/oauth2-proxy

Homepage

Install Homepage to provide a nice dashboard.

Homepage

Install the homepage Helm chart and modify its default values:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

# renovate: datasource=helm depName=homepage registryUrl=http://jameswynn.github.io/helm-charts
HOMEPAGE_HELM_CHART_VERSION="2.1.0"

helm repo add --force-update jameswynn http://jameswynn.github.io/helm-charts
cat > "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-homepage.yml" << EOF
enableRbac: true
serviceAccount:
  create: true
ingress:
  main:
    enabled: true
    annotations:
      gethomepage.dev/enabled: "true"
      gethomepage.dev/name: Homepage
      gethomepage.dev/description: A modern, secure, highly customizable application dashboard
      gethomepage.dev/group: Apps
      gethomepage.dev/icon: homepage.png
      nginx.ingress.kubernetes.io/auth-url: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/auth
      nginx.ingress.kubernetes.io/auth-signin: https://oauth2-proxy.${CLUSTER_FQDN}/oauth2/start?rd=\$scheme://\$host\$request_uri
    ingressClassName: nginx
    hosts:
      - host: ${CLUSTER_FQDN}
        paths:
          - path: /
            pathType: Prefix
    tls:
      - hosts:
          - ${CLUSTER_FQDN}
config:
  bookmarks:
  services:
  widgets:
    - logo:
        icon: kubernetes.svg
    - kubernetes:
        cluster:
          show: true
          cpu: true
          memory: true
          showLabel: true
          label: "${CLUSTER_NAME}"
        nodes:
          show: true
          cpu: true
          memory: true
          showLabel: true
  kubernetes:
    mode: cluster
  settings:
    hideVersion: true
    title: ${CLUSTER_FQDN}
    favicon: https://raw.githubusercontent.com/homarr-labs/dashboard-icons/38631ad11695467d7a9e432d5fdec7a39a31e75f/svg/kubernetes.svg
    layout:
      Apps:
        icon: mdi-apps
      Observability:
        icon: mdi-chart-bell-curve-cumulative
      Cluster Management:
        icon: mdi-tools
env:
  - name: HOMEPAGE_ALLOWED_HOSTS
    value: ${CLUSTER_FQDN}
  - name: LOG_TARGETS
    value: stdout
EOF
helm upgrade --install --version "${HOMEPAGE_HELM_CHART_VERSION}" --namespace homepage --create-namespace --values "${TMP_DIR}/${CLUSTER_FQDN}/helm_values-homepage.yml" homepage jameswynn/homepage

Clean-up

Clean-up

Back up the certificate before deleting the cluster (in case it was renewed):

1
2
3

if [[ "$(kubectl get --raw /api/v1/namespaces/cert-manager/services/cert-manager:9402/proxy/metrics | awk '/certmanager_http_acme_client_request_count.*acme-v02\.api.*finalize/ { print $2 }')" -gt 0 ]]; then
  velero backup create --labels letsencrypt=production --ttl 2160h --from-schedule velero-monthly-backup-cert-manager-production
fi

Stop Karpenter from launching additional nodes:

1
2

helm uninstall -n karpenter karpenter || true
helm uninstall -n ingress-nginx ingress-nginx || true

Remove any remaining EC2 instances provisioned by Karpenter (if they still exist):

1
2
3
4

for EC2 in $(aws ec2 describe-instances --filters "Name=tag:kubernetes.io/cluster/${CLUSTER_NAME},Values=owned" "Name=tag:karpenter.sh/nodepool,Values=*" Name=instance-state-name,Values=running --query "Reservations[].Instances[].InstanceId" --output text); do
  echo "🗑️  Removing Karpenter EC2: ${EC2}"
  aws ec2 terminate-instances --instance-ids "${EC2}"
done

Disassociate a Route 53 Resolver query log configuration from an Amazon VPC:

1
2
3
4
5
6
7
8

RESOLVER_QUERY_LOG_CONFIGS_ID=$(aws route53resolver list-resolver-query-log-configs --query "ResolverQueryLogConfigs[?contains(DestinationArn, '/aws/eks/${CLUSTER_NAME}/cluster')].Id" --output text)
if [[ -n "${RESOLVER_QUERY_LOG_CONFIGS_ID}" ]]; then
  RESOLVER_QUERY_LOG_CONFIG_ASSOCIATIONS_RESOURCEID=$(aws route53resolver list-resolver-query-log-config-associations --filters "Name=ResolverQueryLogConfigId,Values=${RESOLVER_QUERY_LOG_CONFIGS_ID}" --query 'ResolverQueryLogConfigAssociations[].ResourceId' --output text)
  if [[ -n "${RESOLVER_QUERY_LOG_CONFIG_ASSOCIATIONS_RESOURCEID}" ]]; then
    aws route53resolver disassociate-resolver-query-log-config --resolver-query-log-config-id "${RESOLVER_QUERY_LOG_CONFIGS_ID}" --resource-id "${RESOLVER_QUERY_LOG_CONFIG_ASSOCIATIONS_RESOURCEID}"
    sleep 5
  fi
fi

Clean up AWS Route 53 Resolver query log configurations:

1
2
3
4

AWS_CLUSTER_ROUTE53_RESOLVER_QUERY_LOG_CONFIG_ID=$(aws route53resolver list-resolver-query-log-configs --query "ResolverQueryLogConfigs[?Name=='${CLUSTER_NAME}-vpc-dns-logs'].Id" --output text)
if [[ -n "${AWS_CLUSTER_ROUTE53_RESOLVER_QUERY_LOG_CONFIG_ID}" ]]; then
  aws route53resolver delete-resolver-query-log-config --resolver-query-log-config-id "${AWS_CLUSTER_ROUTE53_RESOLVER_QUERY_LOG_CONFIG_ID}"
fi

Remove the EKS cluster and its created components:

1
2
3

if eksctl get cluster --name="${CLUSTER_NAME}"; then
  eksctl delete cluster --name="${CLUSTER_NAME}" --force
fi

Remove the Route 53 DNS records from the DNS Zone:

1
2
3
4
5
6
7
8
9
10

CLUSTER_FQDN_ZONE_ID=$(aws route53 list-hosted-zones --query "HostedZones[?Name==\`${CLUSTER_FQDN}.\`].Id" --output text)
if [[ -n "${CLUSTER_FQDN_ZONE_ID}" ]]; then
  aws route53 list-resource-record-sets --hosted-zone-id "${CLUSTER_FQDN_ZONE_ID}" | jq -c '.ResourceRecordSets[] | select (.Type != "SOA" and .Type != "NS")' |
    while read -r RESOURCERECORDSET; do
      aws route53 change-resource-record-sets \
        --hosted-zone-id "${CLUSTER_FQDN_ZONE_ID}" \
        --change-batch '{"Changes":[{"Action":"DELETE","ResourceRecordSet": '"${RESOURCERECORDSET}"' }]}' \
        --output text --query 'ChangeInfo.Id'
    done
fi

Delete Instance profile which belongs to Karpenter role:

1
2
3
4
5
6

if AWS_INSTANCE_PROFILES_FOR_ROLE=$(aws iam list-instance-profiles-for-role --role-name "KarpenterNodeRole-${CLUSTER_NAME}" --query 'InstanceProfiles[].{Name:InstanceProfileName}' --output text); then
  if [[ -n "${AWS_INSTANCE_PROFILES_FOR_ROLE}" ]]; then
    aws iam remove-role-from-instance-profile --instance-profile-name "${AWS_INSTANCE_PROFILES_FOR_ROLE}" --role-name "KarpenterNodeRole-${CLUSTER_NAME}"
    aws iam delete-instance-profile --instance-profile-name "${AWS_INSTANCE_PROFILES_FOR_ROLE}"
  fi
fi

Remove the CloudFormation stack:

1
2
3
4
5

aws cloudformation delete-stack --stack-name "${CLUSTER_NAME}-route53-kms"
aws cloudformation delete-stack --stack-name "${CLUSTER_NAME}-karpenter"
aws cloudformation wait stack-delete-complete --stack-name "${CLUSTER_NAME}-route53-kms"
aws cloudformation wait stack-delete-complete --stack-name "${CLUSTER_NAME}-karpenter"
aws cloudformation wait stack-delete-complete --stack-name "eksctl-${CLUSTER_NAME}-cluster"

Remove volumes and snapshots related to the cluster (as a precaution):

1
2
3
4
5
6
7
8
9
10

for VOLUME in $(aws ec2 describe-volumes --filter "Name=tag:KubernetesCluster,Values=${CLUSTER_NAME}" "Name=tag:kubernetes.io/cluster/${CLUSTER_NAME},Values=owned" --query 'Volumes[].VolumeId' --output text); do
  echo "💾 Removing Volume: ${VOLUME}"
  aws ec2 delete-volume --volume-id "${VOLUME}"
done

# Remove EBS snapshots associated with the cluster
for SNAPSHOT in $(aws ec2 describe-snapshots --owner-ids self --filter "Name=tag:Name,Values=${CLUSTER_NAME}-dynamic-snapshot*" "Name=tag:kubernetes.io/cluster/${CLUSTER_NAME},Values=owned" --query 'Snapshots[].SnapshotId' --output text); do
  echo "📸 Removing Snapshot: ${SNAPSHOT}"
  aws ec2 delete-snapshot --snapshot-id "${SNAPSHOT}"
done

Remove the CloudWatch log group:

1
2
3

if [[ "$(aws logs describe-log-groups --query "logGroups[?logGroupName==\`/aws/eks/${CLUSTER_NAME}/cluster\`] | [0].logGroupName" --output text)" = "/aws/eks/${CLUSTER_NAME}/cluster" ]]; then
  aws logs delete-log-group --log-group-name "/aws/eks/${CLUSTER_NAME}/cluster"
fi

Remove the ${TMP_DIR}/${CLUSTER_FQDN} directory:

1
2
3
4
5
6
7
8
9
10

if [[ -d "${TMP_DIR}/${CLUSTER_FQDN}" ]]; then
  for FILE in "${TMP_DIR}/${CLUSTER_FQDN}"/{kubeconfig-${CLUSTER_NAME}.conf,{aws-cf-route53-kms,cloudformation-karpenter,eksctl-${CLUSTER_NAME},helm_values-{alloy,aws-load-balancer-controller,beyla,cert-manager,external-dns,grafana,homepage,ingress-nginx,karpenter,loki,mailpit,mimir-distributed,oauth2-proxy,tempo,velero},k8s-{karpenter-nodepool,scheduling-priorityclass,storage-snapshot-storageclass-volumesnapshotclass}}.yml}; do
    if [[ -f "${FILE}" ]]; then
      rm -v "${FILE}"
    else
      echo "❌ File not found: ${FILE}"
    fi
  done
  rmdir "${TMP_DIR}/${CLUSTER_FQDN}"
fi

Enjoy … 😉

Kubernetes, Amazon EKS, Security, Grafana stack
amazon eks k8s kubernetes security eksctl cert-manager external-dns prometheus sso oauth2-proxy grafana stack
This post is licensed under CC BY 4.0 by the author.
